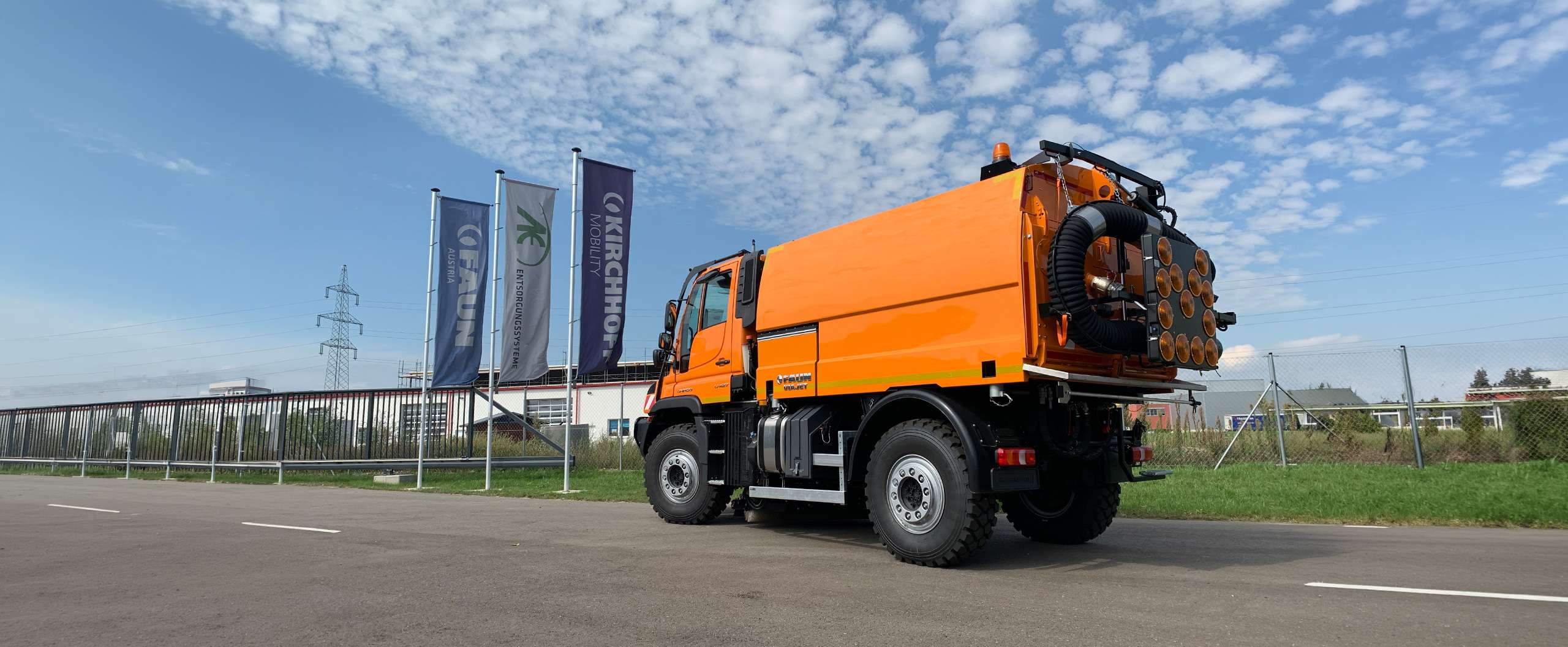

FAUN VIAJET UNIMOG

VERSATILE QUICK-CHANGE SYSTEM

FAUN VIAJET AND UNIMOG
Partner for perfect sweeping

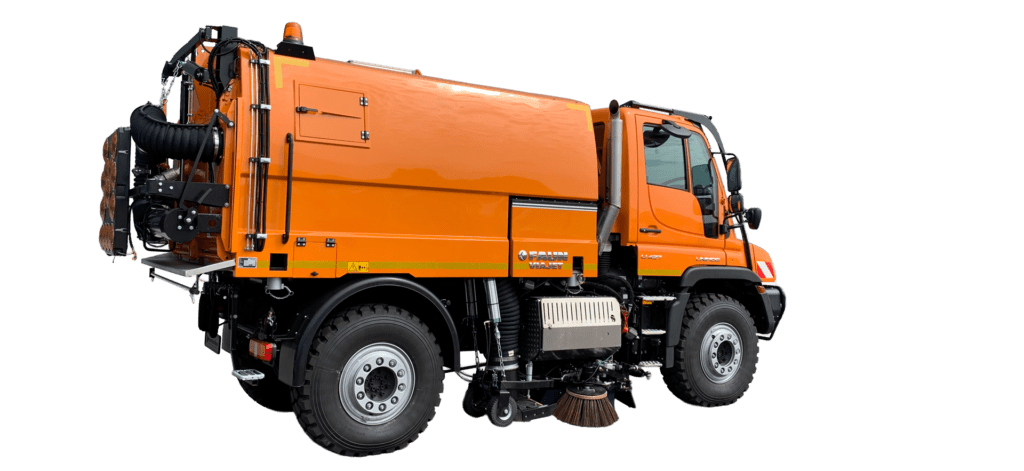

The robust design ensures reliable operation even under demanding conditions, while the proven carrier vehicle offers excellent maneuverability, off-road capability, and high efficiency.

Available in a right-hand (R) or right- and left-hand (R/L) sweeping version, the machine is optimally designed for the efficient cleaning of streets, paths, squares, and special-purpose areas.

Multi-talented machine

In its standard configuration, the VIAJET 5 U already offers a wide range of application possibilities. It delivers high performance, cost efficiency, and consistently reliable cleaning results in daily operation.

With a variety of optional equipment, the machine can be precisely adapted to individual requirements and extended for additional cleaning tasks. The following page provides an overview of the available options.

Strong Foundation

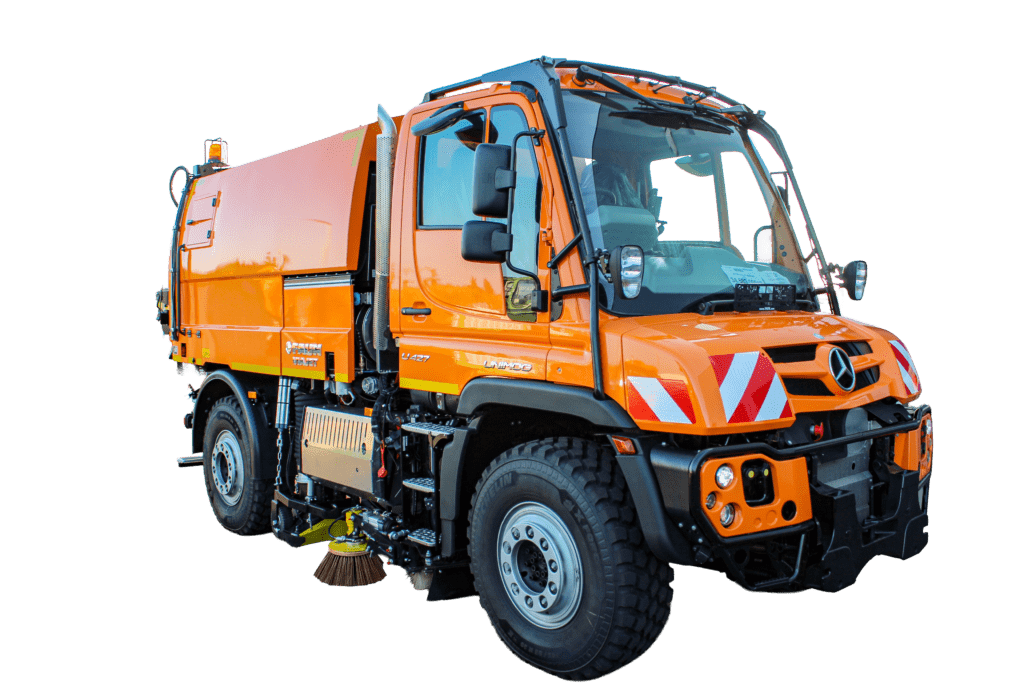

Built on the Mercedes-Benz Unimog U 427 with a 3,600 mm wheelbase and a powerful 6-cylinder engine delivering 272 hp, the mounted sweeper combines maximum performance with outstanding versatility for year-round municipal use.

Interchangeable configuration

Thanks to the well-engineered interchangeable body concept, the mounted sweeper can be removed in a short time, allowing the Mercedes-Benz Unimog U 427 to be used flexibly for other municipal tasks, such as winter service.

A dedicated mounting trolley and support legs enable quick and safe removal of the sweeping units and ensure a smooth conversion of the vehicle.

Technical data

Chassis
Mercedes-Benz U 427 – 435

Wheelbase
3,600 mm

Hopper volume
5 m³

Water capacity
1,000 l

Permissible gross vehicle weight
14 t

Dimensions (approx.)

Length
6,300 mm

Width
2,150 mm

Height
3,000 mm

Overhang
1,400 mm

Weight (empty)
9,900 kg

Payload capacity
4,100 kg

Sweeping gear

Suction shaft
600 mm

Plate broom
600 mm

Roller broom
1.500 mm
(Ø 350 mm)

Sweeping width (max.)

Disc brush, suction nozzle
1,000 mm

Disc brush, suction nozzle, roller brush
2,300 mm

ALTERNATIVE CHASSIS
WITH SWEEPER PACKAGE

Typ

Wheelbase

Permissible gross vehicle weight

Chassis engine

Sweeping gear

Hopper volume (m³)

U 423

3,150 mm

14 t

4-cylinder
230 hp

right

4

U 423 L

3,600 mm

14 t

4-cylinder
230 hp

both sides or right

5

U 427 – 435

3,600 mm

14 t

6-cylinder
270-350 hp

both sides or right

5

U 527 – 535

3,350 mm

16,5 t

6-cylinder
270-350 hp

right

4

U 527 – 535

3,900 mm

16,5 t

6-cylinder
270-350 hp

both sides or right

5
